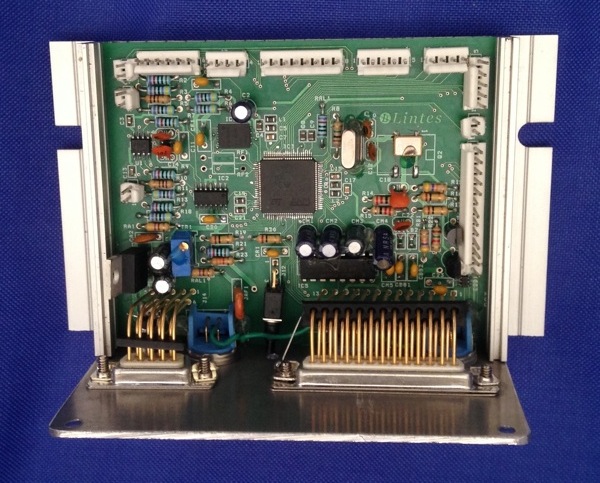

CBS Core Board System

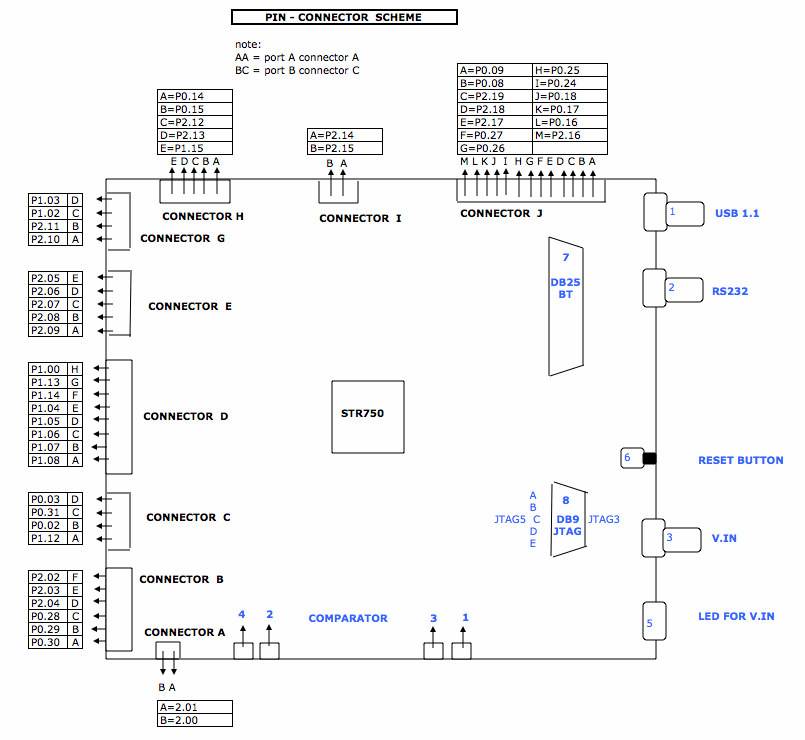

Core Board System v.5 - Connections

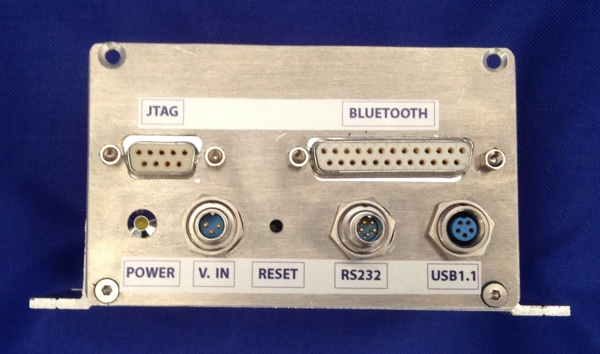

The following preprogrammed connections are available:
- USB 1.1
- Bluetooth WT12-A
- RS232
- J-Tag

Core Board System v.5

- Chip: STR750-FV2-T6 (Core ARM7 = 32 bit)
- Flash Memory: (Micron) N25Q256A13EF840E = 32 MByte
- other programmable functionalities on:

	total on chip	used for connections	programmable
ADC pins	16	5	11
GPIO pins	56	18	38

After the test, every CBS card is being registered with a number:
version "5" and a progressive number "1-2-...",
risulting in a name for the CBS as follows: "CBS51", "CBS52", etc...
