Objectives Esterno |
|||||||
OBJECTIVES MITUTOYO ESTERNO
Model = Metallurgical Plan Apochromatic
Model = Metallurgical Plan Apochromatic Super Long working distance
with infinity corrected optics
BF (Bright Field Illumination)
N° |
MODEL |
ORDER N. |

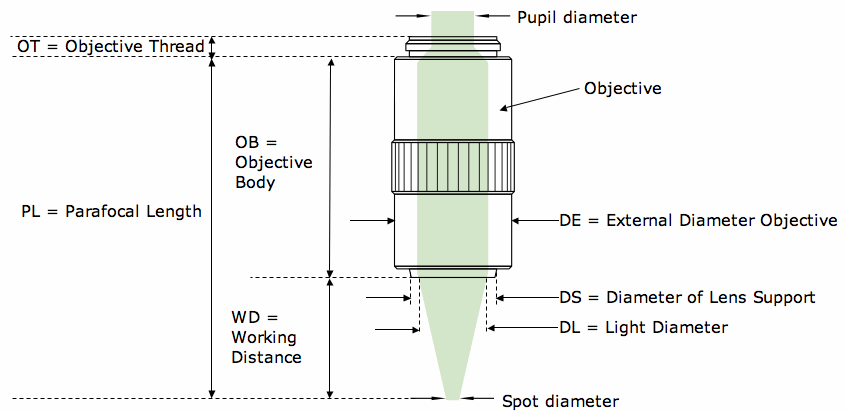

MAGNI-FICA- TION |
WD mm |
OB mm |
PL mm |
OT mm |
DE |
DS ø mm |
DL ø mm |
Mass g |
NOTES |
11 |
M Plan Apo |
378-803-2 |
10x |
33,5 |
61,5 | 95,0 | 5,0 | 32,2 |
25,0 |
24,0 | 230 |
|
12 |
M Plan Apo |
378-804-2 |
20x |
20,0 |
75,0 | 95,0 | 5,0 | 32,2 |
25,2 |
23,8 | 370 |
|
13 |
M Plan Apo |
378-805-2 |
50x |
13,0 |
82,0 | 95,0 | 5,0 | 32,2 |
25,2 |
21,5 | 290 |
|
14 |
M Plan Apo SL |
378-813-3 |
100x |
13,0 |
82,0 | 95,0 | 5,0 | 32,2 |
25,2 |
22,0 | 290 |
under study, not yet bought |
15 |
M Plan Apo SL |
378-816-3 |
200x |
13,0 |
82,0 | 95,0 | 5,0 | 37,0 |
29,4 |
27,0 | 490 |
under study, not yet bought |
