Gas High Pressure Cabins
|
||||||
GAS HIGH PRESSURE CABINS

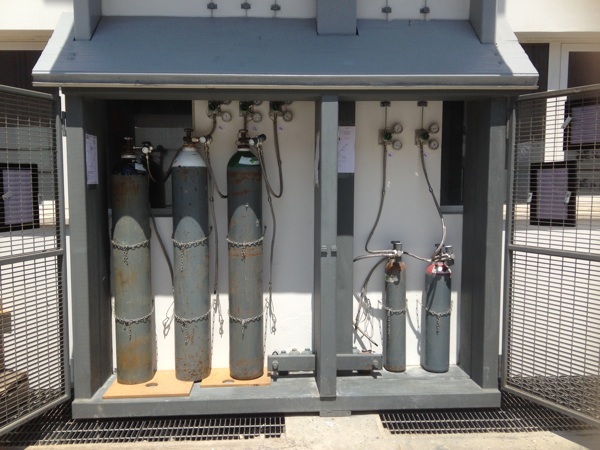

Both cabin 1 and cabin 2 have been designed only for inert gases or for gases lighter than air |
||||||||||
high pressure gas |
Pressure IN relative bar |
Pres sure gauge IN |
Regu lator |
Pressure gauge OUT |
Pressure OUT relative bar |
|||||
Max |
Working |
Max |
Working |
|||||||
Max |
Min |
|||||||||
| Cabin 1 | Nitrogen | N2 | 248 |
192 |
15 |
Yes |
Yes |
Yes |
17,2 |
10,0 |
| Oxygen | O2 | 248 |
192 |
15 |
Yes |
Yes |
Yes |
17,2 |
10,0 |
|
| Argon | Ar | 248 |
192 |
15 |
Yes |
Yes |
Yes |
17,2 |
10,0 |
|
| Cabin 2 | Helium | He | 248 |
192 |
15 |
Yes |
Yes |
Yes |
17,2 |
10,0 |
| Hydrogen | H2 | 248 |
192 |
15 |
Yes |
Yes |
Yes |
17,2 |
10,0 |
|

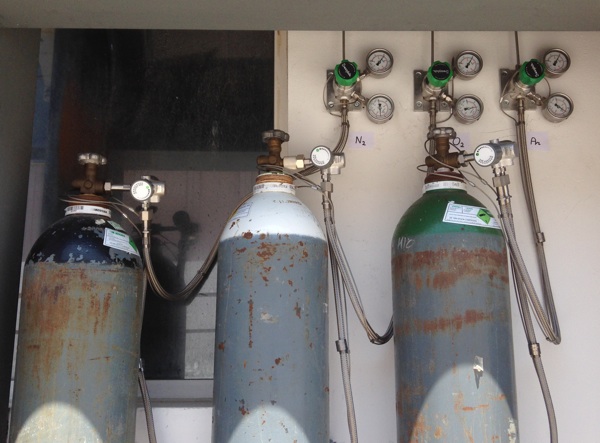

Cabina 1 |

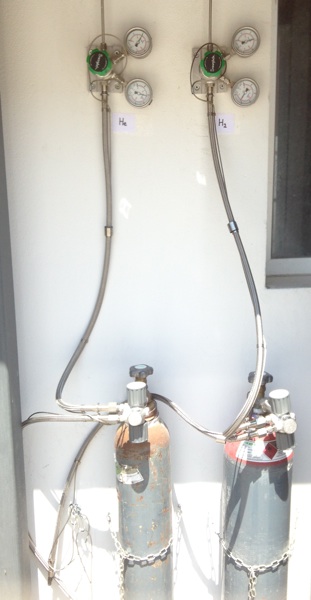

 Cabina 2 |
